Red Light for Astronomy Observing

[Schematics and source]   [Other PIC projects]

When doing astronomy observing at night preserving night vision is critical. This requires using the minimum amount of light that makes the sky charts readable. What is this minimum level depends on how dark are your surroundings, how much time you have spent in darkness, how well your eyes adapt for night vision, what type of charts are you using, what object are you observing, and so on. My old astronomy light was not very convenient - it only had two brightness levels, "too bright" and "not quite that bright", and it was eating batteries like crazy. This one is a huge improvement and is a real pleasure to use.

The PIC light has a brightness level that can be adjusted anywhere between comfortably bright and almost invisible with 128 steps of adjustment. Those 128 levels are distributed exponentially, to match the non-linear light sensitivity of the eye. In addition, there is a button for temporary brightness boost. This is convenient in the cases where you want to have the light really low, and bring it up a bit for a second only when you are trying to see some tiny detail on the star charts. The "boost" level is also fully adjustable.

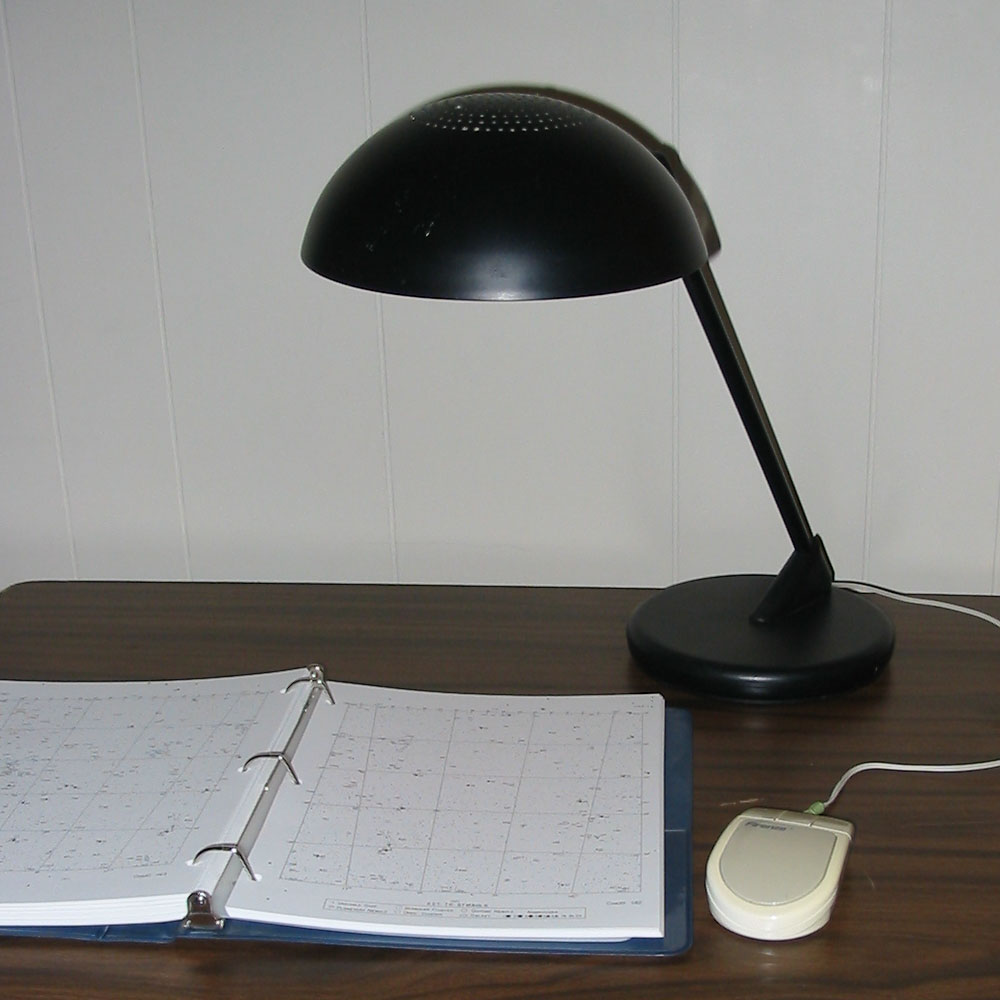

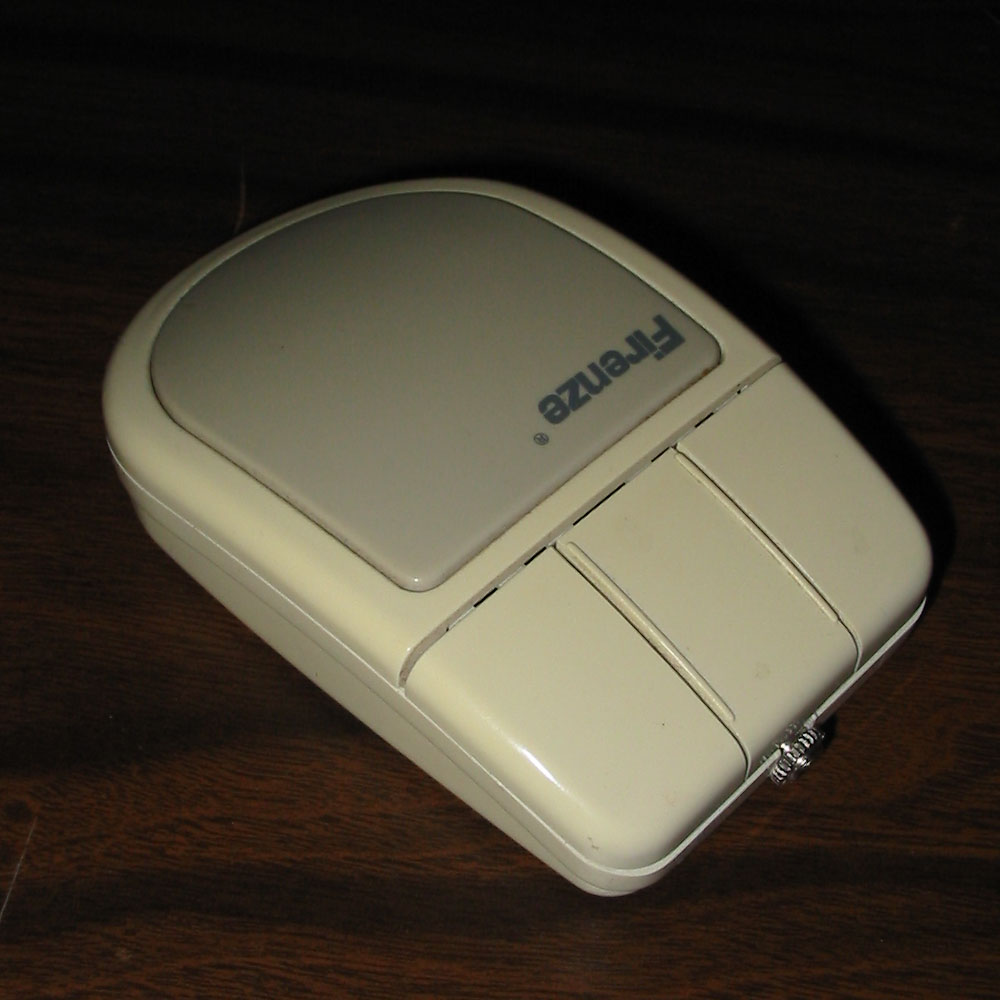

The light consists of two parts - an old desk lamp with a patch of LCDs in place of the bulb, that is connected through an audio jack to a box containing the controller and the battery. I'm using an old computer mouse as controller/battery enclosure - this way, I can have the control buttons in a convenient place next to my charts. Instead of having an on/off switch, the light is turned on simply by plugging the lamp jack into the "mouse" (this required a slight modification of the female jack by bending a bit one of the contacts - you could figure it out by looking at the schematics). When I'm packing the light the mouse part goes into my crowded toolbox - with no on/off switch there is no danger that it will get turned on and I'll discover the battery drained next time I need it.

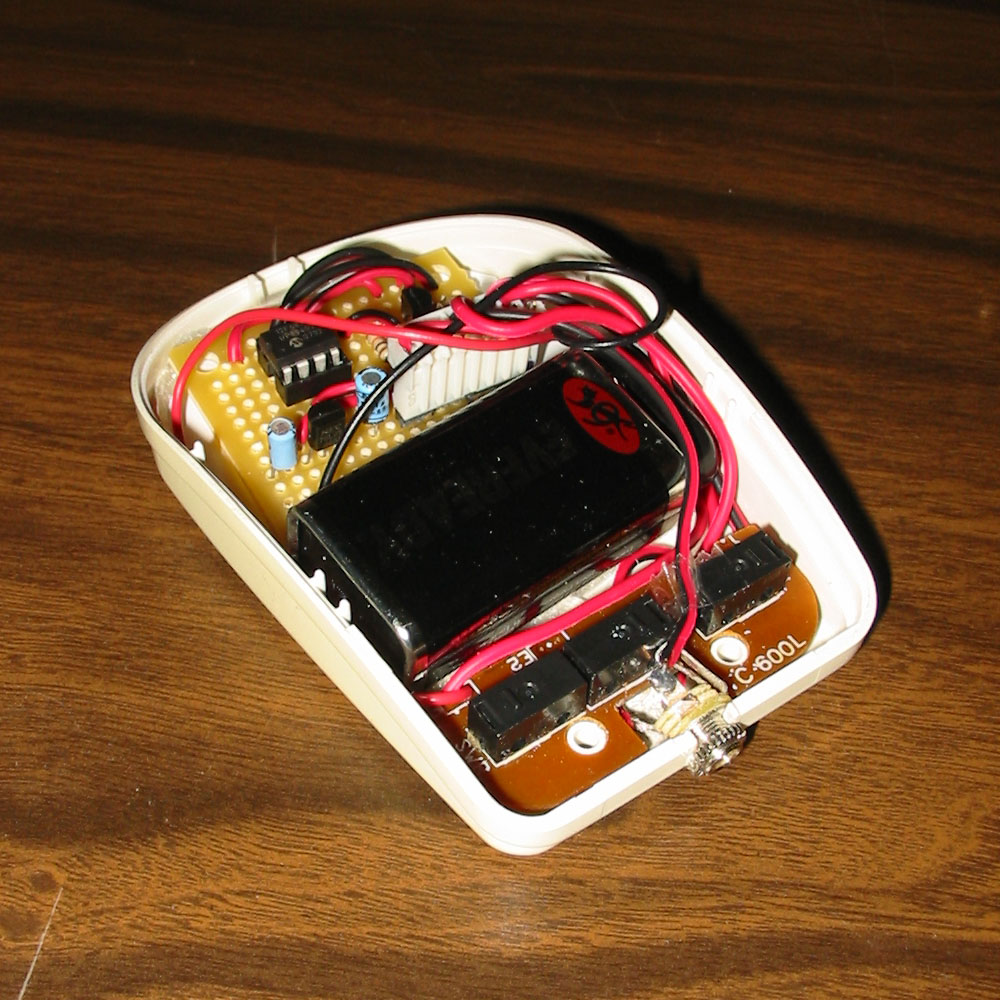

Here is the inside of the "mouse" - the size is perfect for the electronics and a 9V battery:

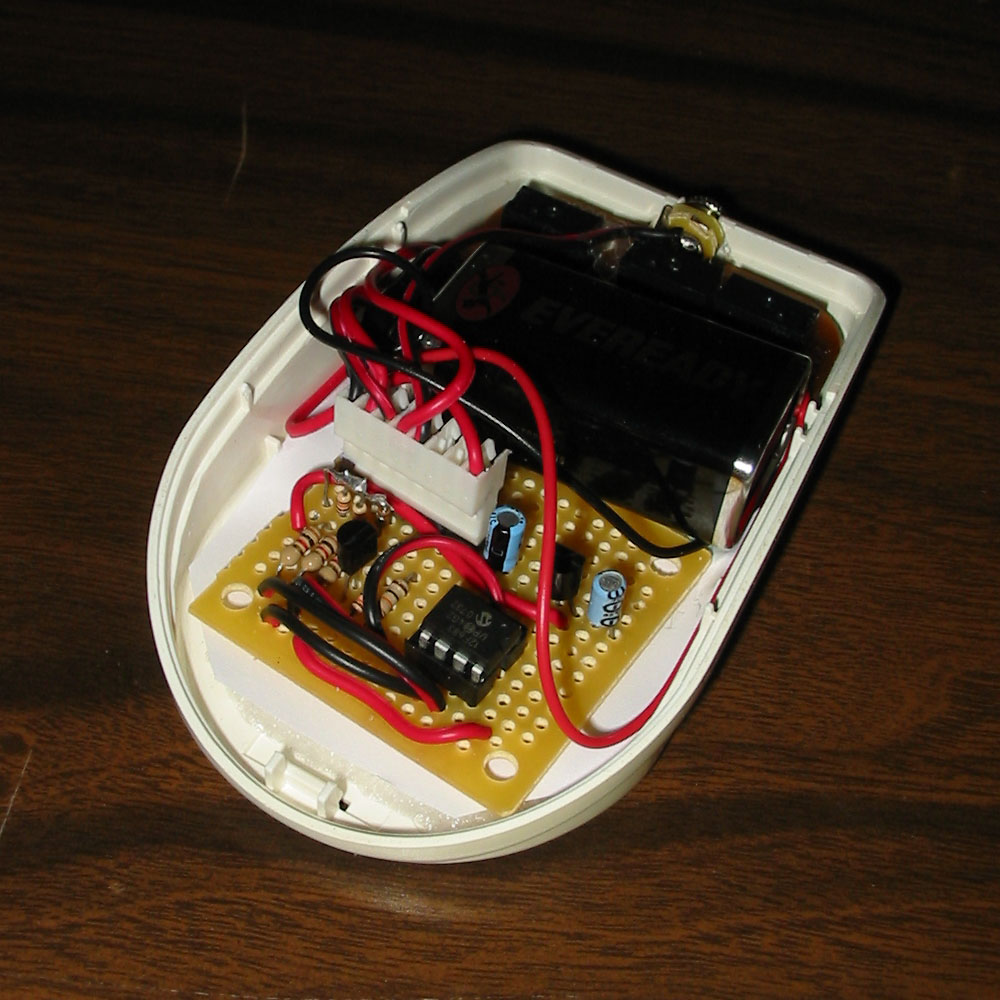

I cut off most of the original mouse PCB, leaving only the buttons and connecting those with the microcontroller. A foam insert at the bottom makes for a snug fit that does not require any glue or screws for the circuit board or the battery.

Operating the light:
  • Turning the light on and off. Plug the jack into the controller and the light switches on; an average brightness level is selected by default. Unplugging the jack turns the light off.
  • Adjusting the brightness. The brightness is adjusted by pressing and holding the left or right mouse buttons. When you get to a convenient brightness level, release the buttons.
  • Momentary brightness boost. Press and hold the middle mouse button. The brightness will increase until you release the button and then will return to the previous brightness level.
  • Adjusting the "boost" brightness. Press and hold the middle mouse button. Select a new "boost" brightness level using the left and right buttons.

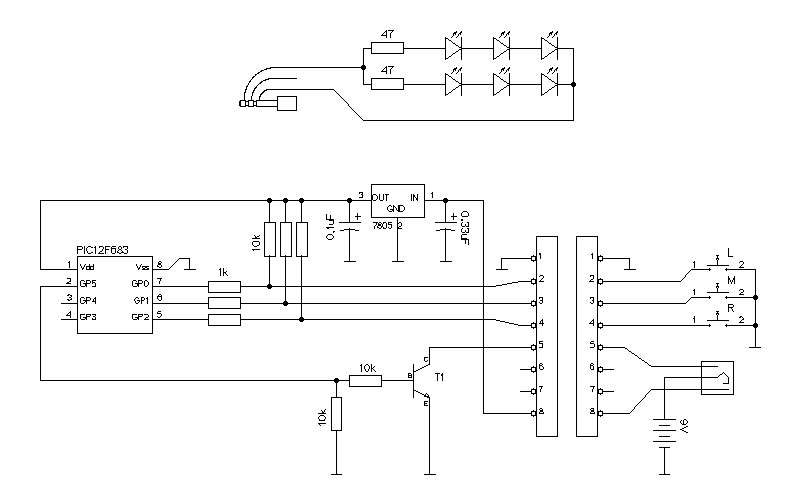

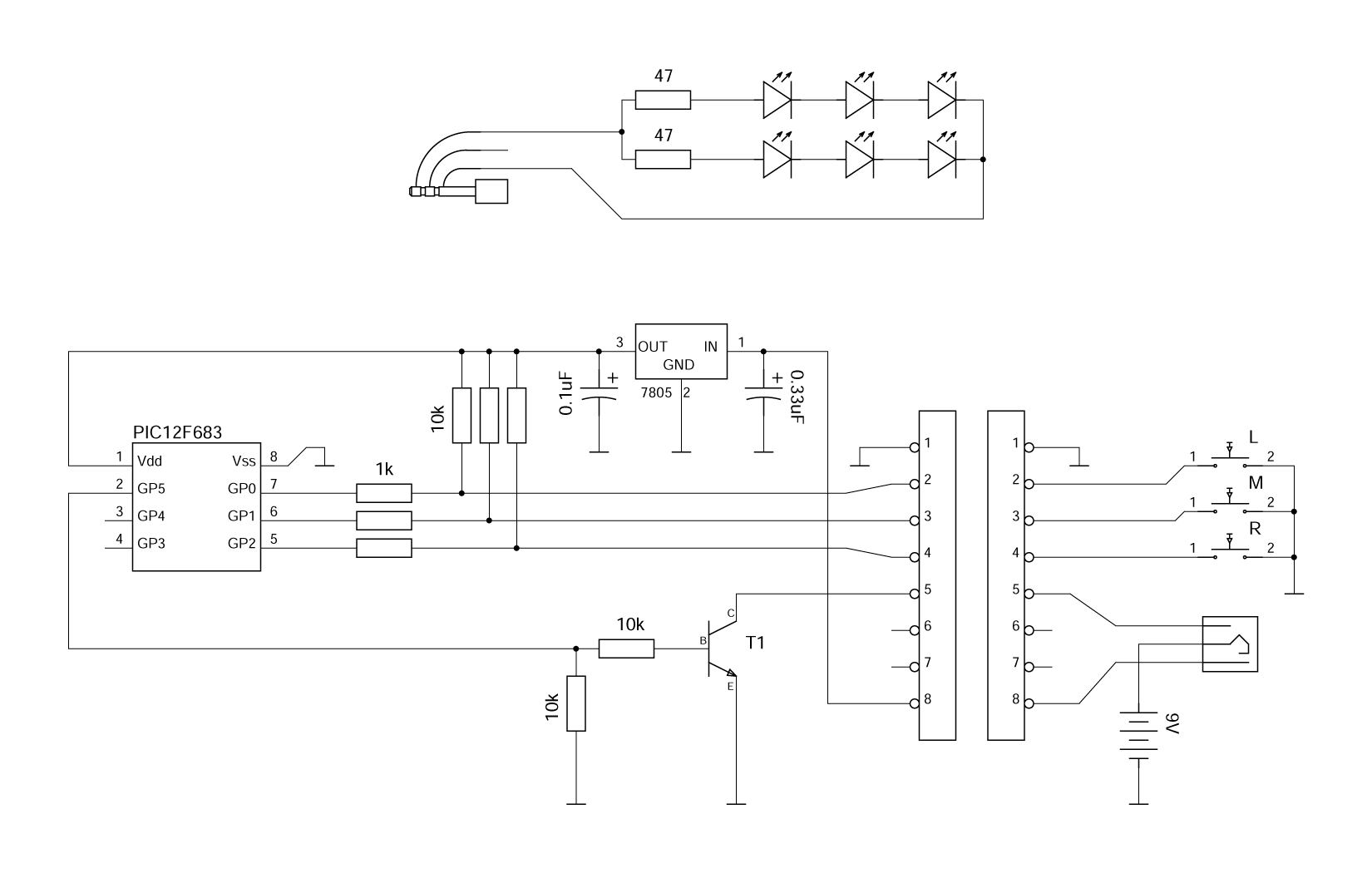

  Schematics, source, and additional pictures
