Aug 7, 2013
GPSMash is a command-line utility for Windows for processing GPS tracklog data. Capabilities of GPSMash include:
- data recovery from from broken GPX or NMEA log files
- handling and organizing large amounts of GPS data
- filtering and cleaning-up data
- exporting track data to various formats
- transforming GPS track records according to predefined rules
- analyzing and producing reports from GPS data
- inclusion in scripts for automated data processing
Here are a couple of examples of what can be done using GPSMash. The first one is a 3D visualization of over 1 million GPS trackpoints centered around the San Francisco Bay Area:
The GPS data has been organized, cleaned-up, and converted to X3D format using GPSMash. The visualization of the X3D data was done in Blender.

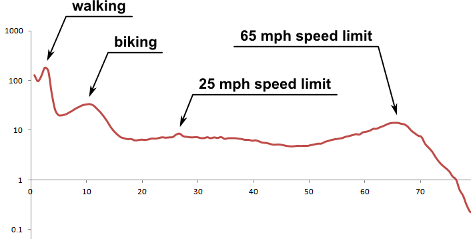

The second example is a speed histogram of the same data, showing the amount of time spent moving at different speeds. Each peak in the table corresponds to a different mode of transportation (walking, biking, driving in the city and on the highway):
The GPS data has been analyzed and converted to CSV format in GPSMash. The graph was generated from the CSV data using Excel.
